The internet is full of nice stuff, including this pummer pdf (orig link via oreilly)

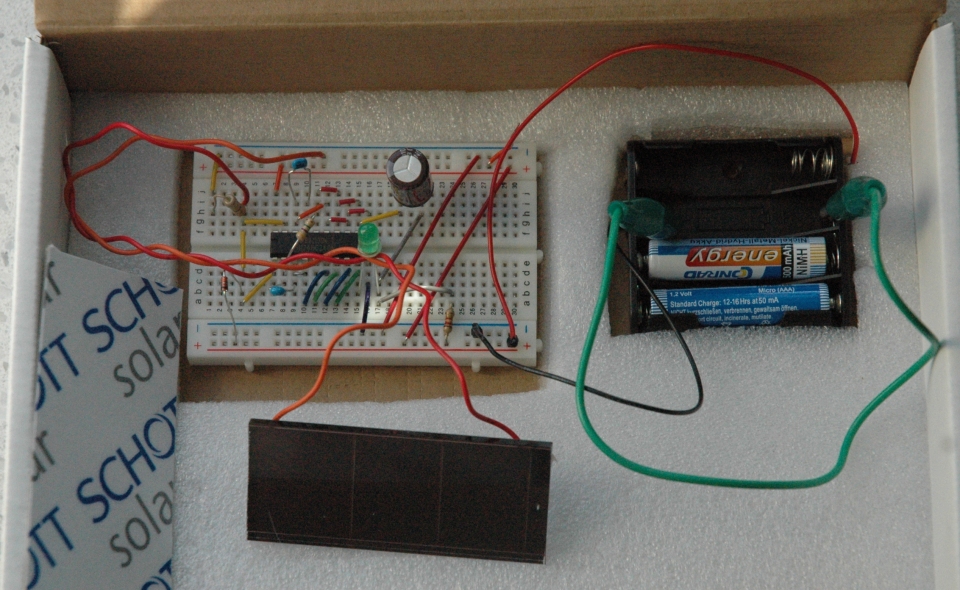

a quite simple ``light soaking at daylight, blinking at night time'' device. very nice is that the blinking is more a flash followed by a dimmed lighting before switching off. some devices standing together seem to communicate together when the daytime fades. and it's easily put together: | |

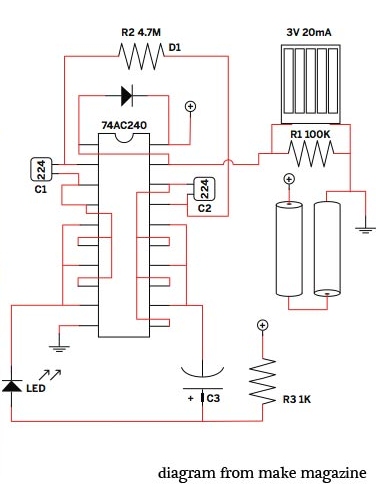

the circuit from the makezine article.
about the sn74hc240 logic chip here in duty. |
|

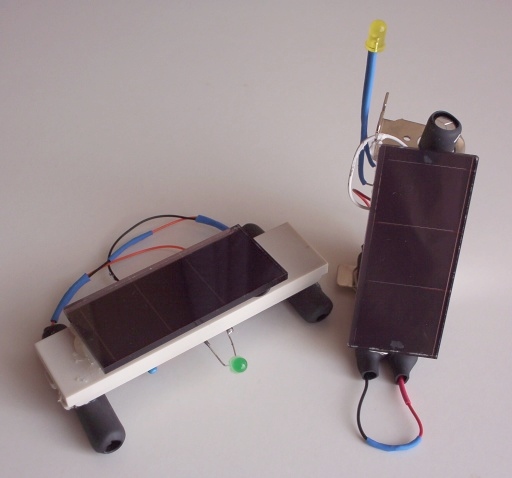

here the both pummers built first (guess, which one is bert ;) | |

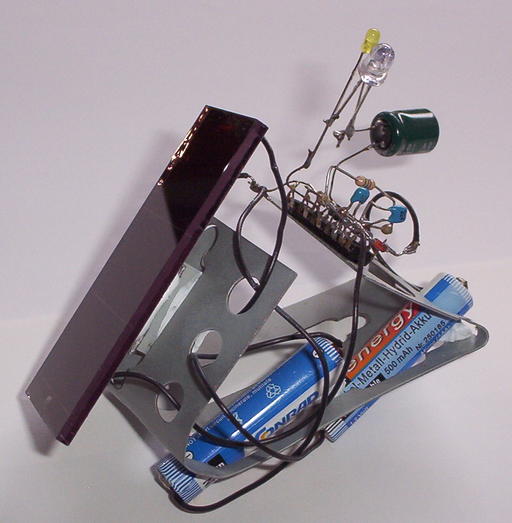

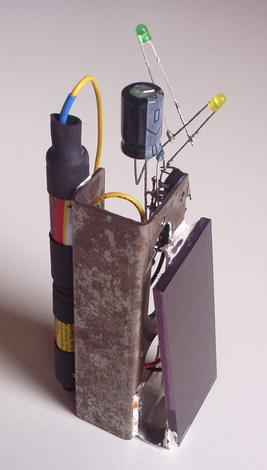

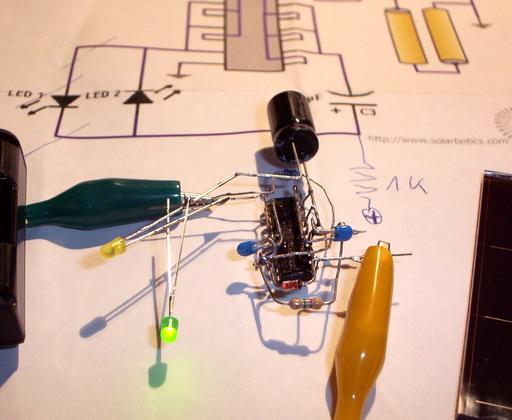

and here a dual LED version. i really like the look with the rusty 3.5" adapter: |
|
another nice one simply glued to a bent i/o shield. |
Some links about pummers:
• many sources at Google images
• to the beam wiki (www.beam-wiki.org)
Have fun, blink blink...
