A lucky ducki meets the joule thief:

The next DIY project is: joule thief - squeeze some more energy out of used batteries.

Google links and pics about the joule thief: joule thief   <= click me harder! click me quick!

First some parts disassambled from a LED light (this one i think),
the LED and the magentic clips, nice to contact the battery.

A ferrit-ring cut from a mainboard and wired with some loops

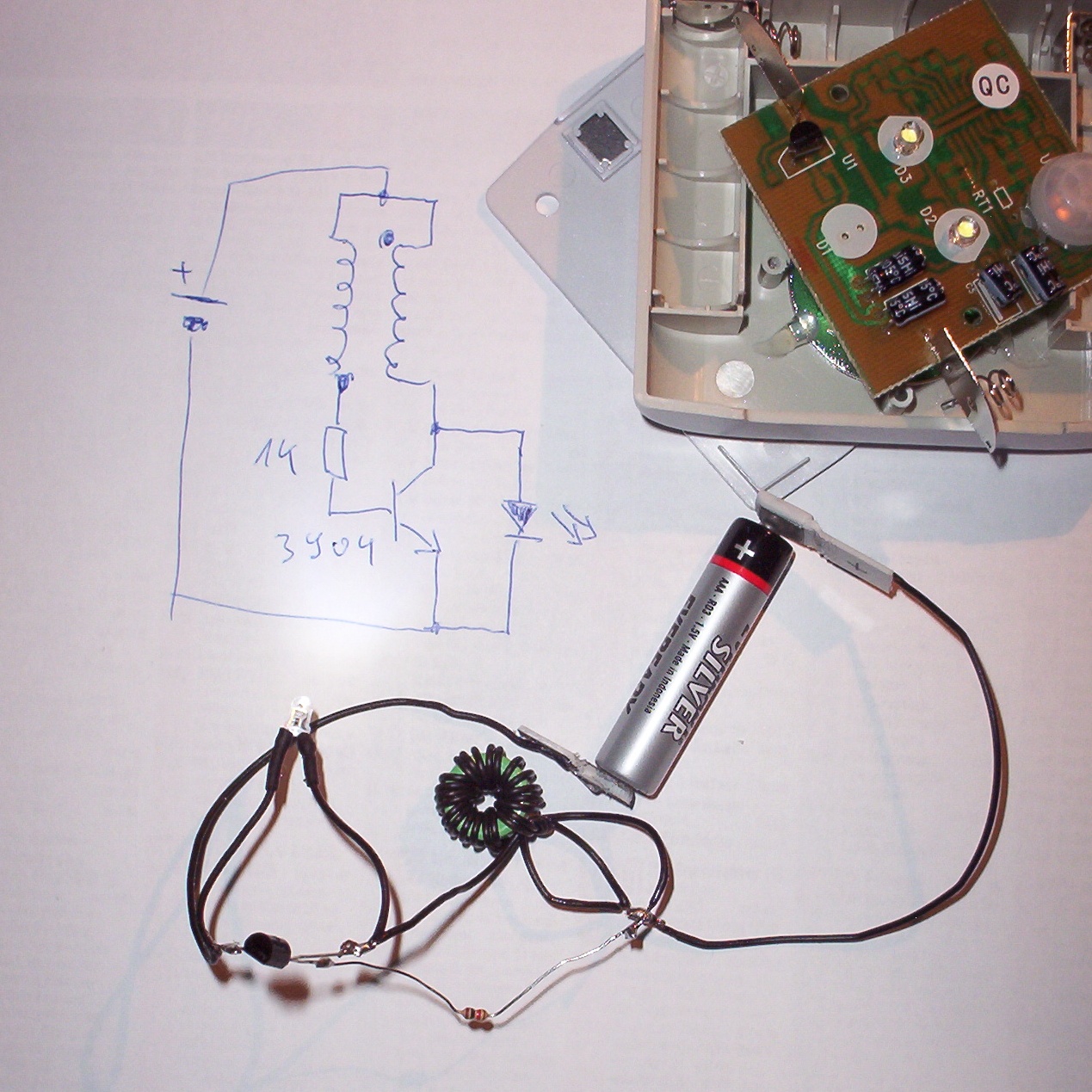

and a 3904 signal npn transistor from the usual beam parts are quickly are put together:

And if its right,
there is a light!

Now the question of the questions: which duck will be the lucky one ?
Only one duck will have the luck - only one can be the first one!

Yes, this ducky is the winner: Cute, smart and well prepared!

But now ducky will meet the joule thief.
Ripped off, stuffed and knitted - hmm, sounds like being cooked...

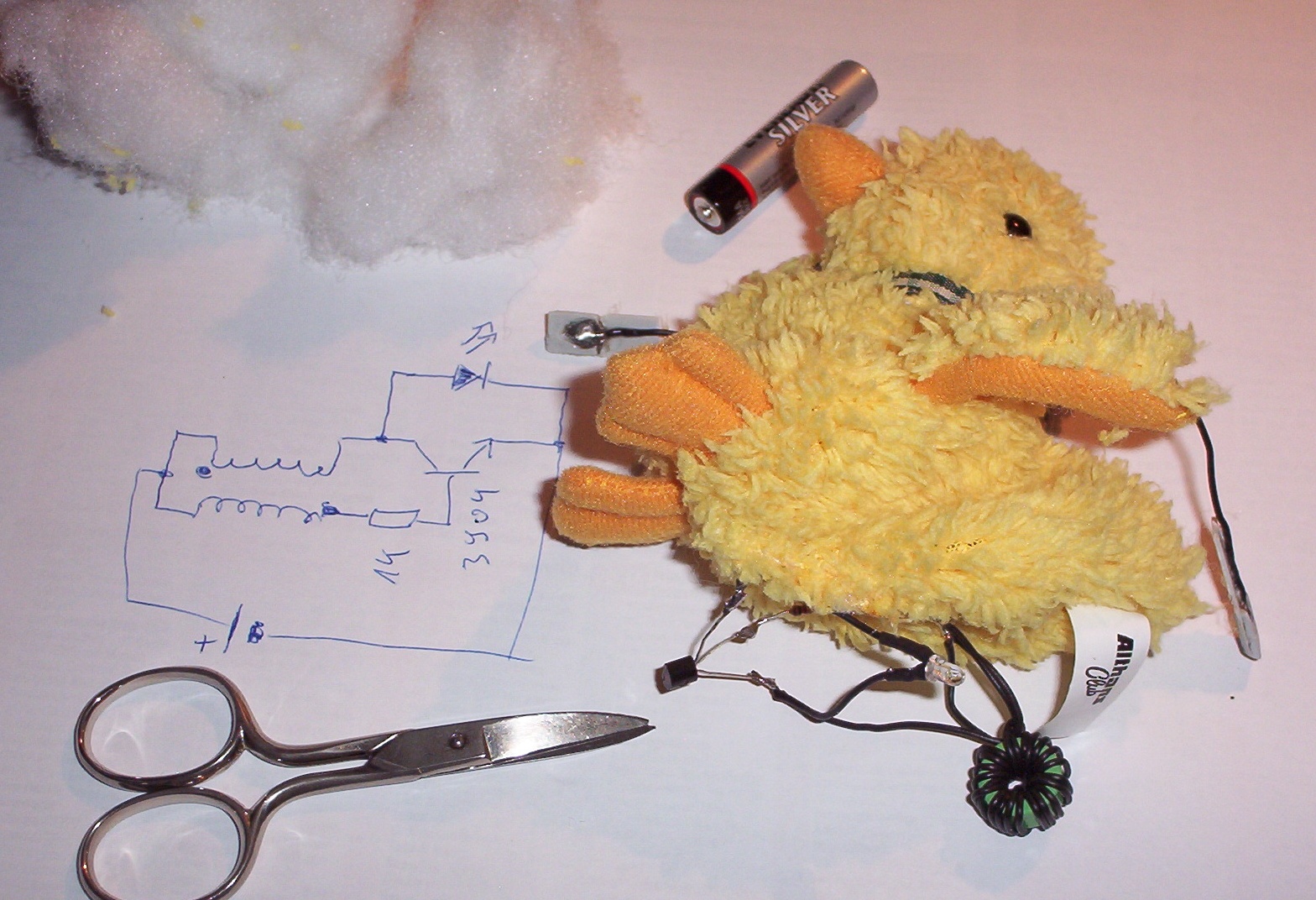

Here the operation:

Stay tough! And relax, we are professionals ;)

Well done! Anything is fine.

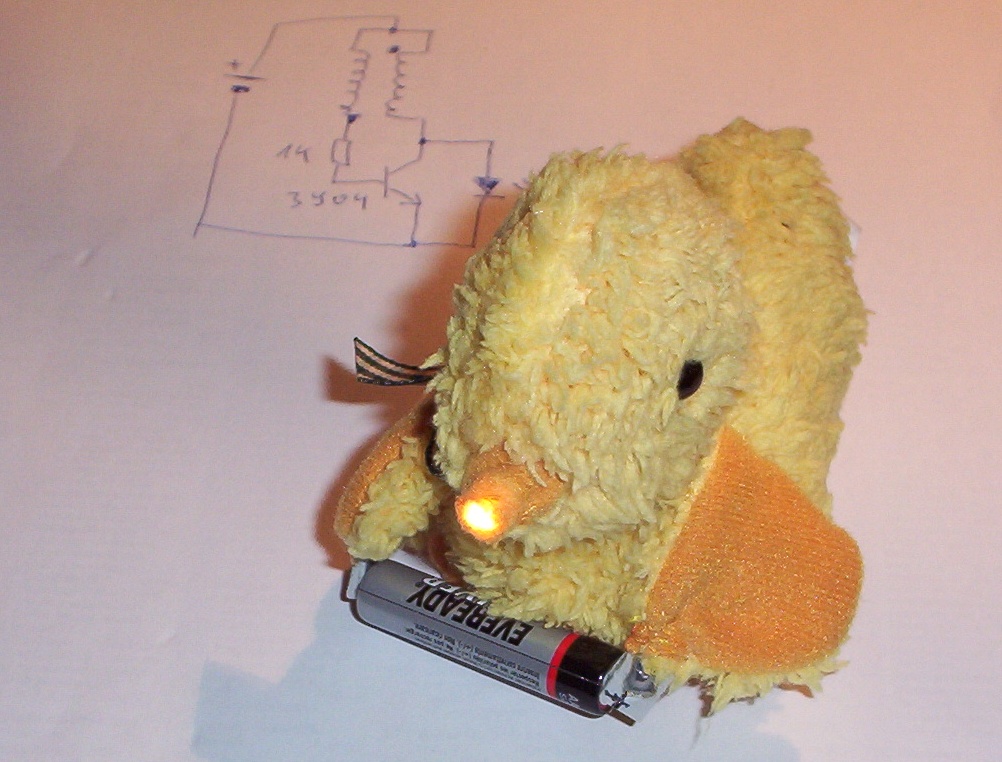

New rebirthed: The tough duck, the first one putting a light into the ducky universe! Sure, there is a light!

Great! Now this lucky ducky sucks remaining energy out of old batteries
and spends a light on the duckyverse!

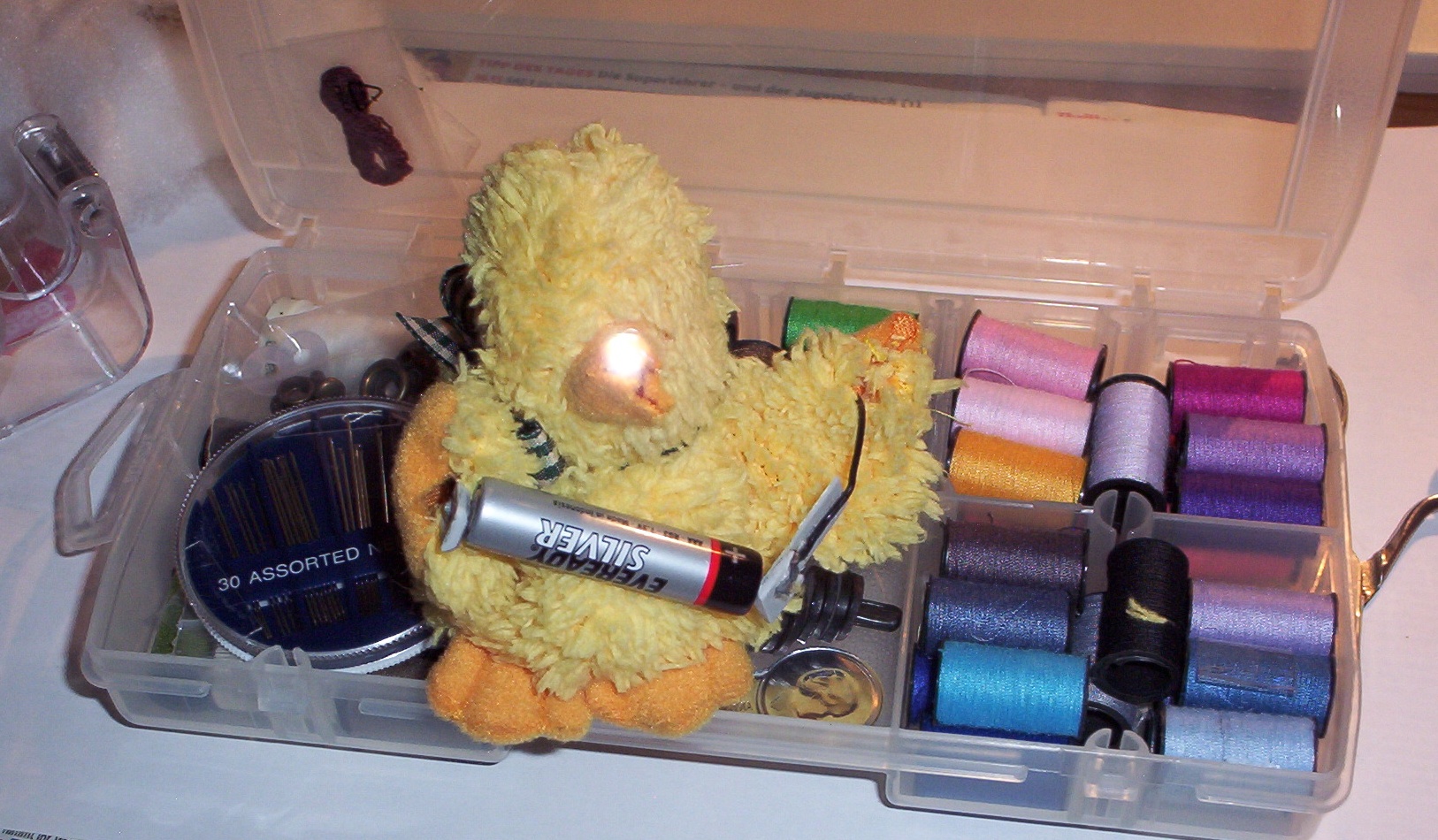

Here it is, the Lucky Ducki:


Well, only one thing to say at last:

Just follow the light - da' duck is always right ;-)


Have fun building your own joule thief!
