About the sn74hc240 logic chip

The logic chip used is a ``OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS'' SN74HC240.

especially the ``HC'' specs low power consumption (lower than a ``AC'' version), but with lower max output current.

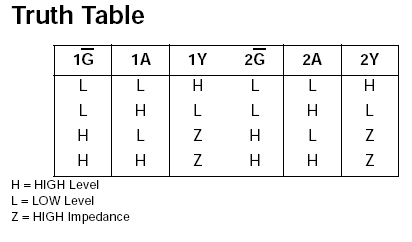

240_a 240_b
